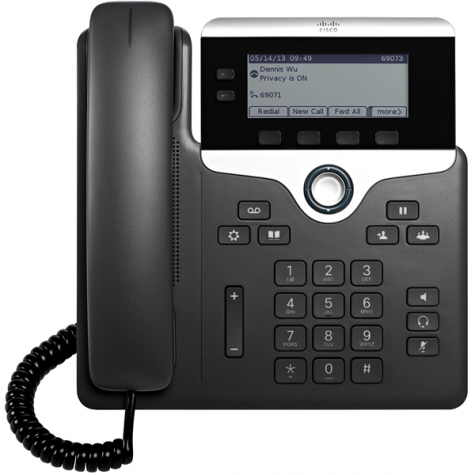

Cisco 7841

    Quickstart

    Learn how to do the most common functions on your phone. For information not covered below, please refer to the manufacturer’s user guide.

    Call Forwarding

    Automatically forward incoming calls to an internal extension or external number.

    Watch Video
    1. Press .
    2. Select User Preferences > Call Preferences.
    3. Enter the internal extension or external number to which calls will be forwarded.
    4. Highlight the desired forwarding type:
      • Forward All: Forwards all incoming calls.
      • No Answer: Forwards all unanswered incoming calls.
      • Busy: Forwards calls that arrive when you're already in a call.
    5. If you selected No Answer, enter how many rings to wait before forwarding.
    6. Press the Set softkey (to disable call forwarding, turn Off the call forward mode).
      Tip: While your phone rings, press the Decline softkey to forward the incoming call to your voicemail.

    Do Not Disturb (DND)

    Stop your phone from ringing and send all incoming calls directly to voicemail.

    Watch Video
    Press the DND softkey to enable/disable.

    Voicemail Access

    Check your voicemail from your phone.

    Watch Video
    1. Press .
    2. Dial your password (default 0000).
      Download your Voicemail Menu Guide.

    Speed Dial

    Assign regularly dialed numbers to additional line keys on your phone.

    Please contact your system administrator regarding your speed dial assignments.

    3-Way Calls

    Speak with two parties simultaneously by creating a mini-conference call on your line.

    Watch Video
    1. While on an active call, press .
    2. Dial the internal extension or external number to add to the conference.
    3. Wait for the second party to answer, and then let them know that you would like to add them to a 3-way call.
    4. Press again.

    Transfer A Call

    Warm Transfer

    Place a current call on hold and speak with the destination party before transferring the call.

    Watch Video
    1. While on an active call, press .
    2. Dial the transfer destination (internal extension or external number).
    3. Speak to the destination party.
      Tip: To cancel a warm transfer and go back to the original call, look for the Cancel or EndCall softkey.
    4. Press again.

    Blind Transfer

    Transfer a call to another party without speaking to them first.

    Watch Video
    1. While on an active call, press the softkey.
    2. Select the blindxfer softkey.
    3. Dial the transfer destination (internal extension or external number).
      Tip: To transfer a call directly to voicemail, dial 0 + extension.

    Hold

    Place a call on hold while you take some time to look up an answer to a question or answer another call.

    Watch Video
    1. Press .
    2. Press the Resume softkey to retrieve the call.

    Modify Ringtone

    Choose a new ringtone for your phone or assign a different ringtone to each of your lines.

    Watch Video
    1. Press .
    2. Select User preferences > Audio Preferences > Ext(n).
    3. Enter the extension number.
    4. Select the desired ringtone (highlight to sample ringtones).
    5. Press the Set softkey.
      Note: This device does not support silent ringtones.

    Presence Monitoring

    Visually monitor the speed dial contacts assigned to your phone to know whether or not they are on an active call. These line keys will light up (busy lamp field) indicating if someone is busy or available.

    • To presence monitor, a system admin must enable this feature on your phone.
    • The lines you want to presence monitor must be speed dial assignments on your phone.

    Supported Features

    Call Handling Features

    • Warm Transfer
    • Blind Transfer
    • Do Not Disturb (DND) (synchronization with all of the user's other devices)
    • Call Forward All
    • Call Forward Busy
    • Call Forward No Answer
    • Intercom (* + ext)
    • Hold
    • Reject
    • Multi-way Calling
    • Anonymous Call Rejection
    • Call Waiting
    • On-hook Dialing
    • Speakerphone

    User Interface Features

    • Adjustable Ringer Volume
    • On Device Directory
    • LDAP Directory
    • Call Logs
    • Electronic Hook Switch (EHS)

    Feature Keys

    • 4 SIP Accounts
    • 4 Upper Multifunction Keys (supports line assignments)
    • Voicemail Button
    • Mute Button
    • On Device Speed Dial Edit

    Display

    • Black & White Display
    • Message Waiting Indicator (MWI)
    • Caller ID (CID)
    • Shared Line Appearance (SLA)
    • Time/Date Display
    • On-Screen Message Display

    Network & Provisioning

    • On Device Ethernet (PoE)
    • PC Connection
    • Gigabit Ethernet
    • Cisco Multicast (up to two group subscriptions supported)
    • Web Interface Provisionable
    • Secure Provisioning

    Hardware

    • Wired Headset (utilizes AUX port and headset jack. EHS must be enabled)

    Provisioning

    Before you begin:
    1. Verify you have created a device profile.
    2. Verify you have assigned the phone's MAC address to the device profile.
    3. Verify you have properly plugged in the phone.
    Restriction: GoToConnect only supports Cisco 78xx models with PID VID 3PCC or 3PW below the SKU number.

    From the Phone Menu

    Learn how to provision your phone from the phone menu.

    Note: If you are prompted to enter a User password after booting up the phone, select Skip to proceed.
    1. Press .
    2. Select Device administration > Profile rule.
    3. Enter http://‹domain›.onjive.com/p/$MA for the Profile Rule.
      Note: Replace ‹domain› with your unique domain. PBX Administration (classic) users will find their domain in the parentheses at the top of their portal dashboard. portal users will find their domain in Account Settings.
    4. Press Resync.
    What to do next: If the phone doesn’t automatically reboot, power cycle the device to apply its provisioning settings.

    From the Web UI

    Learn how to provision your phone from the web UI.

    1. Press .
    2. Select Status > Network status and then write down the phone's IP Address.
    3. Open an incognito window in Google Chrome, enter the IP address in the address (URL) bar and then press enter on your keyboard. If the web UI doesn't load, enter https:// before the phone’s IP address.
    4. Click Admin Login > advanced.
    5. If you're prompted to enter a password, enter your Device Admin Password.
      Tip: To find your password, log in at https://my.jive.com/pbx and then click Security in the left sidebar.
    6. Go to Voice > Provisioning.
    7. Enter the following Configuration Profile settings:
      Option Description
      Provision Enable Yes
      Profile Rule http://‹domain›.onjive.com/p/$MA
      Note: Replace ‹domain› with your unique domain. PBX Administration (classic) users will find their domain in the parentheses at the top of their portal dashboard. portal users will find their domain in Account Settings.
    8. Click Submit All Changes.
    What to do next: If the phone doesn’t automatically reboot, power cycle the device to apply its provisioning settings.

    Factory Reset

    Factory resetting a phone is when you restore a device to its original factory settings. This will delete everything that was previously on the device.

    1. Press the Settings button.
    2. Select Device Administration > Factory Reset > Ok.

      Result: The phone will automatically reboot.

    Reset Secure Provisioning

    After you factory reset a phone, you’ll need to reset secure provisioning from the admin portal so it can reconnect.

    1. Sign in to PBX Administration (classic) at https://my.jive.com/pbx.
    2. Click Devices in the left sidebar and then choose the device that needs secure provisioning reset.
    3. From Hardware > Reset Secure Provisioning, click Reset.
