HELP FILE

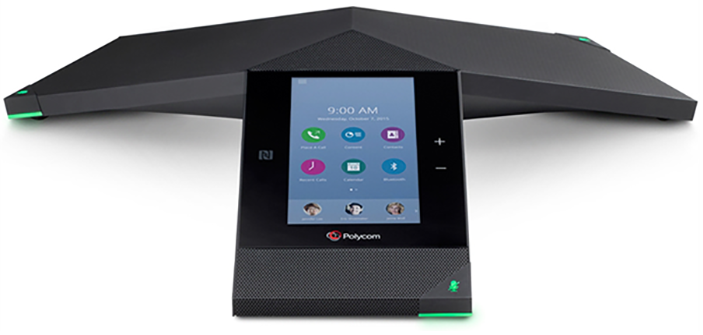

Polycom Trio 8800

Quickstart

Learn how to do the most common functions on your phone.

Tip: For a more in-depth look at your phone, please see the manufacturer's user manual.

Call Forwarding

Automatically forward incoming calls to an internal extension or external number.

Tip: If you need to forward a single call, press the Forward softkey while your phone rings to send the caller to another person.
  1. Tap Settings.
  2. Select Features > Forward.
  3. Select your desired forwarding type.
    • Always : Forwards all incoming calls.
    • No Answer : Forwards all unanswered incoming calls.
    • Busy : Forwards all incoming calls while you're in a call.
  4. Dial the forwarding destination (internal extension or external number).
  5. If you selected No Answer, enter how many rings to wait before forwarding.
  6. Tap the Enable softkey.
To disable call forwarding, press the Disable softkey.

Do Not Disturb (DND)

Stop your phone from ringing and send all incoming calls directly to voicemail.

  1. Tap Settings.
  2. Select Features > Do Not Disturb to enable.
To disable DND, press Do Not Disturb again.

Voicemail Access

Check your voicemail from your phone.

  1. Dial *99.
  2. Dial your password (default 0000).

    Voicemail Menu Guide

Speed Dial

Assign regularly dialed numbers to additional line keys on your phone.

This phone does not support this feature.

3-Way Calls

Speak with two parties simultaneously by creating a mini-conference call on your line.

  1. While on an active call, tap Add+.
  2. Dial the internal extension or external number to add to the conference.
  3. Wait for the second party to answer, and then let them know that you would like to add them to a 3-way call.
  4. Tap Merge.

Warm Transfer

Place a current call on hold and speak with the destination party before transferring the call.

  1. While on an active call, tap the Transfer softkey.
  2. Dial the transfer destination (internal extension or external number).
  3. Speak to the destination party.
  4. Tap Transfer again.

Blind Transfer

Transfer a call to another party without speaking to them first.

  1. While on an active call, tap the Transfer softkey.
  2. Tap the Blind softkey.
  3. Dial the transfer destination (internal extension or external number).

    Tip: To transfer a call directly to voicemail, dial 0 + extension.

Hold

Place a call on hold while you take some time to look up an answer to a question or answer another call.

  1. Tap Hold.
  2. Tap Resume to retrieve the call.

    Tip: If multiple calls are on hold on a single line, use the arrow keys to switch between the calls then press the Resume softkey to retrieve the desired call. If more than two calls are on hold on a single key, an indication will appear on the display, for example “2/3” shows that this is the second call out of three calls.

Modify Ringtone

Choose a new ringtone for your phone or assign a different ringtone to each of your lines.

  1. Tap Settings.
  2. Select Basic > Ring Type.
  3. If there are multiple lines assigned to your phone, select the line you wish to modify.
  4. Highlight the desired ringtone (tap the Play softkey to sample ringtones).

    Note: This phone supports silent ringtones.

  5. Tap to save.

Presence Monitoring

Visually monitor the speed dial contacts assigned to your phone to know whether or not they are on an active call. These line keys will light up (busy lamp field) indicating if someone is busy or available.

This phone does not support this feature.

Supported Features

See what features are supported on your phone.

Call Handling Features

  • Warm Transfer
  • Blind Transfer
  • Do Not Disturb (DND)
  • Call Forward All
  • Call Forward Busy
  • Call Forward No Answer
  • Call Forward Ring
  • Intercom (* + ext)
  • Hold
  • Reject
  • Multi-way Calling
  • Call Waiting
  • On-hook Dialing
  • Speakerphone
  • Stutter Tone

User Interface Features

  • Call Logs
  • LDAP Directory
  • On Device Directory
  • On Device Call Recording
  • Adjustable Ringer Volume
  • Resync
  • Ring Tone Permanence

Feature Keys

  • 1 SIP Account
  • Mute Button

Display

  • Message Waiting Indicator (MWI)
  • Caller ID (CID)
  • Shared Line Appearance
  • Time/Date Display
  • On-Screen Message Display

Network & Provisioning

  • Bluetooth
  • On Device Ethernet (PoE)
  • Polycom Multicast
  • Polycom Acoustic Fence
  • Video
  • Web Interface Provisionable (Web UI)

Provisioning

  1. Verify you have created a device profile.
  2. Verify you have assigned the phone's MAC address to the device profile.
  3. Verify you have properly plugged in the phone.

From the Phone Menu

Learn how to provision your phone from the phone menu.

  1. Press .
  2. Select Settings > Advanced
  3. Enter your Device Admin Password.

    Tip:
    • To find your password, log in at https://my.jive.com/pbx and then click Security in the left sidebar.
    • The password may also be the default password, 456.

  4. Select Administration Settings > Network Configuration.
  5. Select Server Menu or Provisioning Server.
  6. Enter the following settings:
    Option Description
    Server Type HTTP
    Server Address ‹domain›.onjive.com/p
    Note: Replace ‹domain› with your unique domain (found in parentheses at the top of the admin portal dashboard).
    Server Users Clear this field (asterisks may still appear)
    Server Password Clear this field (asterisks may still appear)
  7. Select Exit > Exit > Save Config.
If the phone doesn’t automatically reboot, power cycle the device to apply its provisioning settings.

From the Web UI

Learn how to provision your phone from the web UI.

  1. Press .
  2. Select Status > Network > TCP/IP Parameters and then write down the phone's IP Address.
  3. Open an incognito window in Google Chrome, enter the IP address in the address (URL) bar and then press enter on your keyboard. If the web UI doesn't load, enter https:// before the phone’s IP address.
  4. Enter your Device Admin Password.

    Tip:
    • To find your password, log in at https://my.jive.com/pbx and then click Security in the left sidebar.
    • The password may also be the default password, 456.

  5. Enter your Device Admin Password.

    Tip: To find your password, log in at https://my.jive.com/pbx and then click Security in the left sidebar.

  6. Go to Settings > Provisioning Server.
  7. Enter the following settings:
    Option Description
    Server Type HTTP
    Server Address ‹domain›.onjive.com/p
    Note: Replace ‹domain› with your unique domain (found in parentheses at the top of the admin portal dashboard).
    Server Users Clear this field (asterisks may still appear)
    Server Password Clear this field (asterisks may still appear)
  8. Click Save.
If the phone doesn’t automatically reboot, power cycle the device to apply its provisioning settings.
