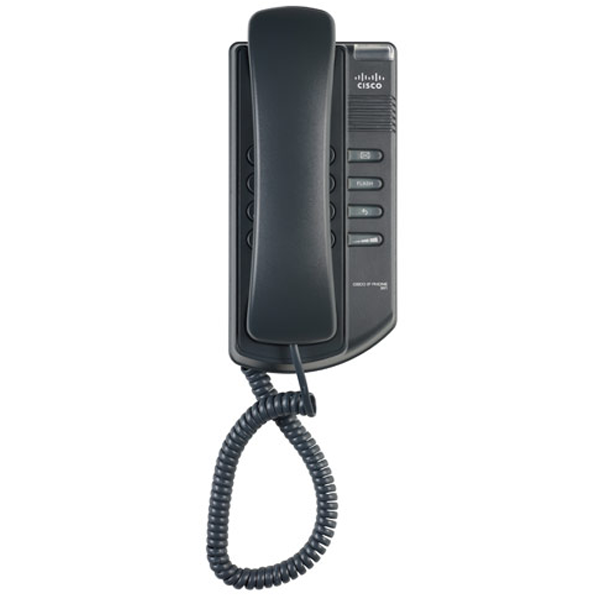

Cisco SPA301

Quickstart

Learn how to do the most common functions on your phone.

Tip: For a more in-depth look at your phone, please see the manufacturer's user's manual.

Call Forwarding

Automatically forward incoming calls to an internal extension or external number.

  1. Dial:
    • *72: Forwards all incoming calls (All).
    • *90: Forwards calls that are declined by pressing the Ignore softkey (Busy).
    • *92: Forwards all unanswered incoming calls (No Answer).
  2. When you hear a dial tone, enter the forwarding destination (internal extension or external number).
  3. Hang up (to disable call forwarding, dial *73: All, *91: Busy, or *93: No Answer).

    Note:
    • These star codes are from the manufacturer—they may not be supported.
    • Calls are still forwarded if the phone goes offline.

Do Not Disturb (DND)

Stop your phone from ringing and send all incoming calls directly to voicemail.

  1. Dial *78 to enable DND.
  2. Dial *79 to disable DND.

    Note: These star codes are from the manufacturer—they may not be supported.

Voicemail Access

Check your voicemail from your phone.

  1. Press .
  2. Dial your password (default 0000).

    Voicemail Menu Guide

Speed Dial

Assign regularly dialed numbers to additional line keys on your phone.

This device does not support this feature.

3-Way Calls

Speak with two parties simultaneously by creating a mini-conference call on your line.

  1. While on an active call, press the Flash key.
  2. Dial the internal extension or external number to add to the conference.
  3. Wait for the second party to answer, and then let them know that you would like to add them to a 3-way call.
  4. Press Flash again.

Transfer Calls

This device does not support this feature.

Hold

Place a call on hold while you take some time to look up an answer to a question or answer another call.

  1. Press the Flash key to place a call on hold.
  2. Press Flash again to retrieve the call.

Modify Ringtone

Choose a new ringtone for your phone or assign a different ringtone to each of your lines.

This device does not support this feature.

Presence Monitoring

Visually monitor the speed dial contacts assigned to your phone to know whether or not they are on an active call. These line keys will light up (busy lamp field) indicating if someone is busy or available.

This device does not support this feature.

Supported Features

Call Handling Features

  • Call Forward All
  • Intercom (* + ext)
  • Anonymous Call Rejection
  • Hold
  • Multi-way Calling
  • Call Waiting
  • Speakerphone

User Interface Features

  • Adjustable Ringer Volume
  • Resync

Feature Keys

  • 1 SIP Accounts
  • Voicemail Button
  • Mute Button

Display

  • Message Waiting Indicator (MWI)

Network & Provisioning

  • Cisco Multicast
  • Web Interface Provisionable (Web UI)
  • Secure Provisioning

Hardware

  • Wired Headset

Provisioning

  1. Verify you have created a device profile.
  2. Verify you have assigned the phone's MAC address to the device profile.
  3. Verify you have properly plugged in the phone.

From the Web UI

Learn how to provision your phone from the web UI.

  1. Enter the phone's IVR Menu by quickly dialing: **** (asterisk).
  2. Dial 110# and then write down the phone's IP Address.
  3. Open an incognito window in Google Chrome, enter the IP address in the address (URL) bar and then press enter on your keyboard. If the web UI doesn't load, enter https:// before the phone’s IP address.
  4. Click Admin Login > advanced.

    Note: If you are prompted to enter a password, contact Customer Support for assistance.

  5. Go to Provisioning and define the following settings:
    Option Description
    Provision Enable Yes
    Profile Rule http://‹domain›.onjive.com/p/$MA
    Note: Replace ‹domain› with your unique domain (found in parentheses at the top of the admin portal dashboard).
  6. Click Submit All Changes.
If the phone doesn’t automatically reboot, power cycle the device to apply its provisioning settings.
