HELP FILE

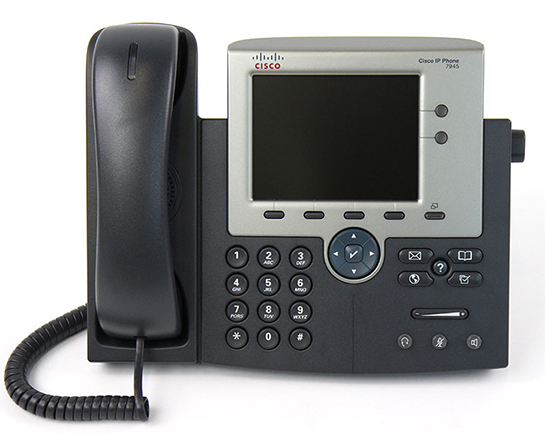

Cisco 7945

Quickstart

Learn how to do the most common functions on your phone.

Tip:
  • Are you a visual learner? Watch this video playlist.
  • For a more in-depth look at your phone, please see the manufacturer's user manual.

Call Forwarding

Automatically forward incoming calls to an internal extension or external number.

Watch Video
There is only one type of forwarding for this device – all incoming calls will be forwarded.
Tip: If you need to forward the incoming call to another person, press the CallFwdBusy softkey while your phone rings.
  1. Press the C FwdALL softkey.
  2. Dial the forwarding destination (internal extension or external number).
  3. Press the EndCall softkey.
To disable call forwarding, press the CFwdALL softkey again.

Do Not Disturb (DND)

Stop your phone from ringing and send all incoming calls directly to voicemail.

Watch Video
  1. Press the DND softkey to enable/disable.

    Your phone logs any missed calls in your call history.

Voicemail Access

Check your voicemail from your phone.

Watch Video
  1. Press .
  2. Dial your password (default 0000).

    Download your Voicemail Menu Guide.

Speed Dial

Assign regularly dialed numbers to additional line keys on your phone.

  1. Press .
  2. Select Call Preferences > Speed Dial Lines.
  3. Scroll to the desired speed dial line and press the Edit softkey.
  4. Enter label and the internal extension or external phone number.
  5. Press the Accept softkey.

3-Way Calls

Speak with two parties simultaneously by creating a mini-conference call on your line.

Watch Video
  1. While on an active call, press More > Confrn.
  2. Dial the internal extension or external number to add to the conference.
  3. Wait for the second party to answer, and then let them know that you would like to add them to a 3-way call.
  4. Press the Confrn softkey again.

Warm Transfer

Place a current call on hold and speak with the destination party before transferring the call.

Watch Video
  1. While on an active call, press the Transfer softkey.
  2. Dial the transfer destination (internal extension or external number).
  3. Speak to the destination party.
  4. Press the Transfer softkey again.

Blind Transfer

Transfer a call to another party without speaking to them first.

Watch Video
  1. While on an active call, press the Transfer softkey.
  2. Dial the transfer destination (internal extension or external number).
  3. Press the Transfer softkey before the destination answers.

    Tip: To transfer a call directly to voicemail, dial 0 + extension.

Hold

Place a call on hold while you take some time to look up an answer to a question or answer another call.

Watch Video
  1. Press the Hold softkey.
  2. Press the Line key to retrieve the call.

Modify Ringtone

Choose a new ringtone for your phone or assign a different ringtone to each of your lines.

  1. Press .
  2. Select User Preferences > Rings.
  3. If there are multiple lines assigned to the device, select the line you wish to modify.
  4. Select the desired ringtone (press Play to sample ringtones).

    Note: This phone supports silent ringtones.

  5. Press the Select softkey.

Presence Monitoring

Visually monitor the speed dial contacts assigned to your phone to know whether or not they are on an active call. These line keys will light up (busy lamp field) indicating if someone is busy or available.

  • To presence monitor, a system admin must enable this feature on your phone.
  • The lines you want to presence monitor must be speed dial assignments on your phone.
  • The number of contacts you can presence monitor is limited the number of line keys on your phone.

Supported Features

See what features are supported on your phone.

Call Handling Features

  • Warm Transfer
  • Blind Transfer
  • Do Not Disturb (DND)
  • Call Forward All
  • Call Forward Busy (press the softkey to forward the incoming call to your voicemail)
  • Intercom (* + ext)
  • Anonymous Call Rejection
  • Hold
  • Multi-way Calling
  • Reject
  • Call Waiting
  • On-hook Dialing
  • Stutter Tone
  • Speakerphone

User Interface Features

  • Call Logs
  • Ring Tone Permanence
  • Adjustable Ringer Volume

Feature Keys

  • 2 SIP Accounts
  • 2 Upper Multifunction Keys (supports line assignments)
  • Voicemail Button
  • Mute Button
  • On Device Speed Dial Edit

Display

  • Color Display
  • Message Waiting Indicator (MWI)
  • Caller ID (CID)
  • Busy Lamp Field (BLF)
  • Time/Date Display
  • On-Screen Message Display

Network & Provisioning

  • On Device Ethernet (PoE)
  • PC Connection

Hardware

  • Wired Headset

Provisioning

Cisco has discontinued this phone and is no longer providing firmware updates. Jive has limited ability to support this device. Please contact Customer Support to provision this phone.
